2、彩票转盘
3、图片折叠
4、进度条旋转
5、粒子效果

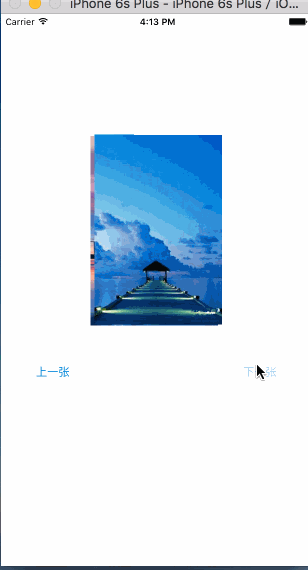

一、切换图片
看起来很复杂的动画，通过少量的计算和编码就可以简单的实现。要做到这一步，必须是需要研究iOS开发中的Core Animation和Core Graphics框架的。日常工作中，对于很多东西不求甚解，只是拿过来用，甚至都不研究、封装一下别人代码，这种做法是很不好的。我喜欢自己造轮子，轮子造多了，开发经验与思维也就提升上去了。
这个动画实现是比较简单的，利用了CABasicAnimation、CAKeyframeAnimation和CAAnimationGroup。看似是两张图片各自有着自己不同的动画，实际不过是一个动画方法，其平移方向与旋转角度的不同。
我是用了CABasicAnimation设置了view的zPosition值，CAKeyframeAnimation对象设计了图片的位移与旋转动画，然后将之放到CAAnimationGroup对象里面，开始动画。
这里有一个注意点，那就是Core Animation设置的动画位移、旋转、缩放都只是一个假象，实际上的view该怎么还是怎么样，并未真正有过变化。所以，在动画结束后，想要正确的效果，那么需要设置view的zPosition值，这个值越大，view越在前面（z轴方向上的“前面”）。
代码：
#import "ViewController.h"@interface ViewController （）@property （nonatomic, strong） NSMutableArray *images;@property （nonatomic, assign） int currentIndex;@property （weak, nonatomic） IBOutlet UIImageView *currentImageView;@property （weak, nonatomic） IBOutlet UIImageView *behindImageView;@end@implementation ViewController- （NSMutableArray *）images{if （_images == nil） {_images = [NSMutableArray array];for （int i = 1; i <= 7; i++） {UIImage *image = [UIImage imageNamed: [NSString stringWithFormat:@"%d",i]];[_images addObject:image];}}return _images;}- （void）viewDidLoad{[super viewDidLoad];self.currentIndex = 0;self.currentImageView.image = self.images[_currentIndex];}- （void）addAnimateWithPoint:（CGPoint ）point angle:（CGFloat）angle fromZ:（CGFloat）fromZ toZ:（CGFloat）toZ view:（UIView *）view{CABasicAnimation *zPosition = [[CABasicAnimation alloc] init];zPosition.keyPath = @"zPosition";zPosition.fromValue = @（fromZ）;zPosition.toValue = @（toZ）;zPosition.duration = 1.2;CAKeyframeAnimation *rotation = [[CAKeyframeAnimation alloc] init];rotation.keyPath = @"transform.rotation";rotation.values = @[@（0）, @（angle）, @（0）];rotation.duration = 2;rotation.timingFunctions = @[[CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut],[CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut]];CAKeyframeAnimation *position = [[CAKeyframeAnimation alloc] init];position.keyPath = @"position";// CGPointMake（110, -20）position.values = @[[NSValue valueWithCGPoint:CGPointZero],[NSValue valueWithCGPoint:point],[NSValue valueWithCGPoint:CGPointZero]];position.timingFunctions = @[[CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut],[CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut]];position.additive = YES;position.duration = 1.2;CAAnimationGroup *animateGroup = [[CAAnimationGroup alloc] init];animateGroup.animations = @[zPosition, rotation, position];// animateGroup.beginTime = 0.5;animateGroup.delegate = self;animateGroup.duration = 1.2;[animateGroup setValue:view forKey:@"view"];[view.layer addAnimation:animateGroup forKey:nil]; view.layer.zPosition = toZ;}- （void）animationDidStop:（CAAnimation *）anim finished:（BOOL）flag{CAAnimationGroup *group = [anim valueForKey:@"view"];if （group ！= nil） {self.currentImageView.image = self.images[_currentIndex];self.currentImageView.layer.zPosition = 1;self.behindImageView.image = nil;self.behindImageView.layer.zPosition = -1;}}- （IBAction）previous:（id）sender {self.currentIndex = （self.currentIndex + 1） % self.images.count;self.behindImageView.image = self.images[_currentIndex];[self addAnimateWithPoint:CGPointMake（-90, 20） angle:0.15 fromZ:-1 toZ:1 view:self.behindImageView];[self addAnimateWithPoint:CGPointMake（90, -20） angle:-0.15 fromZ:1 toZ:-1 view:self.currentImageView];}- （IBAction）next:（id）sender {self.currentIndex = （self.currentIndex + 6） % self.images.count;self.behindImageView.image = self.images[_currentIndex];[self addAnimateWithPoint:CGPointMake（-90, 20） angle:-0.15 fromZ:-1 toZ:1 view:self.behindImageView];[self addAnimateWithPoint:CGPointMake（90, -20） angle:0.15 fromZ:1 toZ:-1 view:self.currentImageView];}@end二、彩票转盘#import "ZYWheelView.h"#define ZYImageW 40#define ZYImageH 46@interface ZYButton : UIButton@end@implementation ZYButton/*** 重写此方法，截取button的点击**/- （UIView *）hitTest:（CGPoint）point withEvent:（UIEvent *）event{CGFloat btnW = self.bounds.size.width;CGFloat btnH = self.bounds.size.height;CGFloat x = 0;CGFloat y = btnH / 2;CGFloat w = btnW;CGFloat h = y;CGRect rect = CGRectMake（x, y, w, h）;if （CGRectContainsPoint（rect, point）） {return nil;}else{return [super hitTest:point withEvent:event];}}- （CGRect）imageRectForContentRect:（CGRect）contentRect{CGFloat imageX = （contentRect.size.width - ZYImageW ） * 0.5;CGFloat imageY = 18;return CGRectMake（imageX, imageY, ZYImageW, ZYImageH）;}- （void）setHighlighted:（BOOL）highlighted{ }@end@interface ZYWheelView （）@property （weak, nonatomic） IBOutlet UIImageView *wheelView;@property （nonatomic, weak） UIButton *lastSelectedBtn;@property （nonatomic, strong） CADisplayLink *timer;@end@implementation ZYWheelView+ （instancetype）wheelView{return [[[NSBundle mainBundle] loadNibNamed:@"ZYWheelView" owner:nil options:nil] lastObject];}- （void）awakeFromNib{self.wheelView.userInteractionEnabled = YES;CGFloat angle = 2 * M_PI / 12.0;UIImage *normalImage = [UIImage imageNamed:@"LuckyAstrology"];UIImage *selectedImage = [UIImage imageNamed:@"LuckyAstrologyPressed"];for （int bi = 0; bi < 12; bi++） {ZYButton *btn = [[ZYButton alloc] init];[btn setBackgroundImage:[UIImage imageNamed:@"LuckyRototeSelected"] forState:UIControlStateSelected];// 切割图片,将切割好的图片设置到按钮上// CGImage中rect是当做像素来使用// UIKit 中是点坐标系// 坐标系的特点:如果在非retain屏上 1个点等于1个像素// 在retain屏上1个点等于2个像素CGFloat imageH = ZYImageH * [UIScreen mainScreen].scale;CGFloat imageW = ZYImageW * [UIScreen mainScreen].scale;CGFloat imageY = 0;CGFloat imageX = bi * imageW;CGRect rect = CGRectMake（imageX, imageY, imageW, imageH）;CGImageRef normalRef = CGImageCreateWithImageInRect（normalImage.CGImage, rect）;CGImageRef selectedRef = CGImageCreateWithImageInRect（selectedImage.CGImage, rect）;[btn setImage:[UIImage imageWithCGImage:normalRef] forState:UIControlStateNormal];[btn setImage:[UIImage imageWithCGImage:selectedRef] forState:UIControlStateSelected];btn.bounds = CGRectMake（0, 0, 58, 143）;btn.layer.anchorPoint = CGPointMake（0.5, 1）;btn.layer.position = CGPointMake（self.frame.size.width * 0.5, self.frame.size.height * 0.5）;btn.transform = CGAffineTransformMakeRotation（angle * bi）;[btn addTarget:self action:@selector（clickBtn:） forControlEvents:UIControlEventTouchUpInside];[self.wheelView addSubview:btn];}[self startRotating];}- （void）startRotating{if （self.timer） return;self.timer = [CADisplayLink displayLinkWithTarget:self selector:@selector（updateTimer）];[self.timer addToRunLoop:[NSRunLoop mainRunLoop] forMode:NSRunLoopCommonModes];}- （void）stopRotating{[self.timer invalidate];self.timer = nil;}- （void）clickBtn:（UIButton *）btn{self.lastSelectedBtn.selected = NO;btn.selected = YES;self.lastSelectedBtn = btn;}- （IBAction）clickCenterBtn:（id）sender {self.userInteractionEnabled = NO;[self stopRotating];CABasicAnimation *basicAnimation = [CABasicAnimation animationWithKeyPath:@"transform.rotation"];basicAnimation.toValue = @（M_PI * 2 * 5）;basicAnimation.duration = 2;basicAnimation.timingFunction = [CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut];// basicAnimation.removedOnCompletion = NO;// basicAnimation.fillMode = kCAFillModeForwards;basicAnimation.delegate = self;[self.wheelView.layer addAnimation:basicAnimation forKey:nil];}- （void）animationDidStop:（CAAnimation *）anim finished:（BOOL）flag{self.userInteractionEnabled = YES;// 根据选中的按钮获取旋转的度数,// 通过transform获取角度CGFloat angle = atan2（self.lastSelectedBtn.transform.b, self.lastSelectedBtn.transform.a）;// 从实际上旋转转盘self.wheelView.transform = CGAffineTransformMakeRotation（-angle）;dispatch_after（dispatch_time（DISPATCH_TIME_NOW, （int64_t）（1 * NSEC_PER_SEC））, dispatch_get_main_queue（）, ^{[self startRotating];}）; }- （void）updateTimer{self.wheelView.transform = CGAffineTransformRotate（self.wheelView.transform, M_PI / 200）;}- （void）dealloc{[self stopRotating];}@end3、图片折叠CAGradientLayer *gradientLayer = [CAGradientLayer layer];gradientLayer.frame = self.bottomView.bounds;gradientLayer.opacity = 0;gradientLayer.colors = @[（id）[UIColor clearColor].CGColor, （id）[UIColor blackColor].CGColor];self.gradientLayer = gradientLayer;[self.bottomView.layer addSublayer:gradientLayer];// 设置渐变颜色// gradientL.colors = @[（id）[UIColor redColor].CGColor,（id）[UIColor greenColor].CGColor,（id）[UIColor yellowColor].CGColor];// 设置渐变定位点// gradientL.locations = @[@0.1,@0.4,@0.5];// 设置渐变开始点，取值0~1// gradientL.startPoint = CGPointMake（0, 1）;设置好之后，在pan手势的方法里面不断改变gradientLayer的opacity即可达到想要的效果。
#import "ViewController.h"@interface ViewController （）@property （weak, nonatomic） IBOutlet UIImageView *topView;@property （weak, nonatomic） IBOutlet UIImageView *bottomView;@property （weak, nonatomic） IBOutlet UIView *containView;@property （nonatomic, weak） CAGradientLayer *gradientLayer;@end@implementation ViewController- （void）viewDidLoad {[super viewDidLoad];// Do any additional setup after loading the view, typically from a nib.[self setupOtherView];//设置渐变的阴影[self setupShadow];}- （void）setupOtherView{//设置contentsRect用来表示图片显示的大小，可以做边下载边显示的UI效果,取值是（0--1）self.topView.layer.contentsRect = CGRectMake（0, 0, 1, 0.5）;self.topView.layer.anchorPoint = CGPointMake（0.5, 1）;self.bottomView.layer.contentsRect = CGRectMake（0, 0.5, 1, 0.5）;self.bottomView.layer.anchorPoint = CGPointMake（0.5, 0）;UIPanGestureRecognizer *gesture = [[UIPanGestureRecognizer alloc] initWithTarget:self action:@selector（pan:）];[self.containView addGestureRecognizer:gesture];}- （void）setupShadow{CAGradientLayer *gradientLayer = [CAGradientLayer layer];gradientLayer.frame = self.bottomView.bounds;gradientLayer.opacity = 0;gradientLayer.colors = @[（id）[UIColor clearColor].CGColor, （id）[UIColor blackColor].CGColor];self.gradientLayer = gradientLayer;[self.bottomView.layer addSublayer:gradientLayer];// 设置渐变颜色// gradientL.colors = @[（id）[UIColor redColor].CGColor,（id）[UIColor greenColor].CGColor,（id）[UIColor yellowColor].CGColor];// 设置渐变定位点// gradientL.locations = @[@0.1,@0.4,@0.5];// 设置渐变开始点，取值0~1// gradientL.startPoint = CGPointMake（0, 1）;}- （void）pan:（UIPanGestureRecognizer *）recognizer{CGFloat y = [recognizer translationInView:self.containView].y;if （y >= 300） y = 300;if （y <= -300） y = -300;// 旋转角度,往下逆时针旋转CGFloat angle = -y / 320.0 * M_PI;self.topView.layer.transform = CATransform3DIdentity;CATransform3D transfrom = CATransform3DIdentity;transfrom.m34 = -1 / 500.0;self.topView.layer.transform = CATransform3DRotate（transfrom, angle, 1, 0, 0）;self.gradientLayer.opacity = y / 300.0;if （recognizer.state == UIGestureRecognizerStateEnded） {// 弹簧效果的动画// SpringWithDamping:弹性系数,越小，弹簧效果越明显[UIView animateWithDuration:0.5 delay:0 usingSpringWithDamping:0.3 initialSpringVelocity:11 options:UIViewAnimationOptionCurveEaseInOut animations:^{self.topView.layer.transform = CATransform3DIdentity;self.gradientLayer.opacity = 0;} completion:nil];}}@end4、旋转进度条#import "ViewController.h"@interface ViewController （）@property （weak, nonatomic） IBOutlet UIView *containView;@end@implementation ViewController- （void）viewDidLoad {[super viewDidLoad];// Do any additional setup after loading the view, typically from a nib.[self setupReplicatorLayerAndAnimation];}- （void）setupReplicatorLayerAndAnimation{CAReplicatorLayer *replicatorLayer = [CAReplicatorLayer layer];replicatorLayer.frame = self.containView.layer.bounds;[self.containView.layer addSublayer:replicatorLayer];CALayer *layer = [CALayer layer];layer.frame = CGRectMake（self.containView.frame.size.width * 0.5, 20, 16, 16）;layer.backgroundColor = [UIColor redColor].CGColor;layer.cornerRadius = layer.frame.size.width / 2;//这一句可以将初始过程移除掉layer.transform = CATransform3DMakeScale（0, 0, 0）;[replicatorLayer addSublayer:layer];replicatorLayer.instanceCount = 22;CABasicAnimation *basicAn = [CABasicAnimation animationWithKeyPath:@"transform.scale"];basicAn.fromValue = @1;basicAn.toValue = @0;basicAn.duration = 1;basicAn.repeatCount = MAXFLOAT;[layer addAnimation:basicAn forKey:nil];replicatorLayer.instanceDelay = basicAn.duration / （double）replicatorLayer.instanceCount;replicatorLayer.instanceTransform = CATransform3DMakeRotation（2 * M_PI / replicatorLayer.instanceCount, 0, 0, 1）;}@end5、粒子效果#import "ZYDrawView.h"@interface ZYDrawView （）@property （nonatomic, strong） UIBezierPath *bezierPath;@property （nonatomic, weak） CAReplicatorLayer *replicatorLayer;@property （nonatomic, weak） CALayer *norLayer;@endstatic int _count = 0;@implementation ZYDrawView- （UIBezierPath *）bezierPath{if （_bezierPath == nil） {_bezierPath = [[UIBezierPath alloc] init];}return _bezierPath;}- （void）awakeFromNib{CAReplicatorLayer *replicatorLayer = [CAReplicatorLayer layer];replicatorLayer.frame = self.bounds;[self.layer addSublayer:replicatorLayer];CALayer *layer = [CALayer layer];layer.frame = CGRectMake（0, -200, 10, 10）;layer.cornerRadius = layer.frame.size.width * 0.5;layer.backgroundColor = [UIColor redColor].CGColor;[replicatorLayer addSublayer:layer];self.replicatorLayer = replicatorLayer;self.norLayer = layer;}- （void）touchesBegan:（NSSet<UITouch *> *）touches withEvent:（UIEvent *）event{CGPoint curPoint = [[touches anyObject] locationInView:self];[self.bezierPath moveToPoint:curPoint];}- （void）touchesMoved:（NSSet<UITouch *> *）touches withEvent:（UIEvent *）event{_count++;CGPoint curPoint = [[touches anyObject] locationInView:self];[self.bezierPath addLineToPoint:curPoint];[self setNeedsDisplay];}- （void）startAnimation{CAKeyframeAnimation *keyframeAn = [CAKeyframeAnimation animationWithKeyPath:@"position"];keyframeAn.path = self.bezierPath.CGPath;keyframeAn.duration = 4;keyframeAn.repeatCount = MAXFLOAT;[self.norLayer addAnimation:keyframeAn forKey:nil];self.replicatorLayer.instanceCount = _count;self.replicatorLayer.instanceDelay = 0.1;}- （void）reDraw{_bezierPath = nil;_count = 1;[self.norLayer removeAllAnimations];[self setNeedsDisplay];}- （void）drawRect:（CGRect）rect{[self.bezierPath stroke];}@end以上内容是小编给大家介绍的Core Animation一些Demo总结 （动态切换图片、大转盘、图片折叠、进度条等动画效果），希望对大家以上帮助！
